Description
NOTE: 0332209152 IS SUPERSEDE TO 0986332053
FEATURES
- The 0332209152 model is discontinued, replaced by 0986332053
- Change over relay, 12V, relay switch, five pole relay
- Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 250.000 switching cycles
- 12V 30/20A relay: rated switching currents of up to 30 A – For high power
- Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
- Standardized connectors: enables quick and easy installation.
- Housing: IP5K4, Terminal: IP20
DESCRIPTION

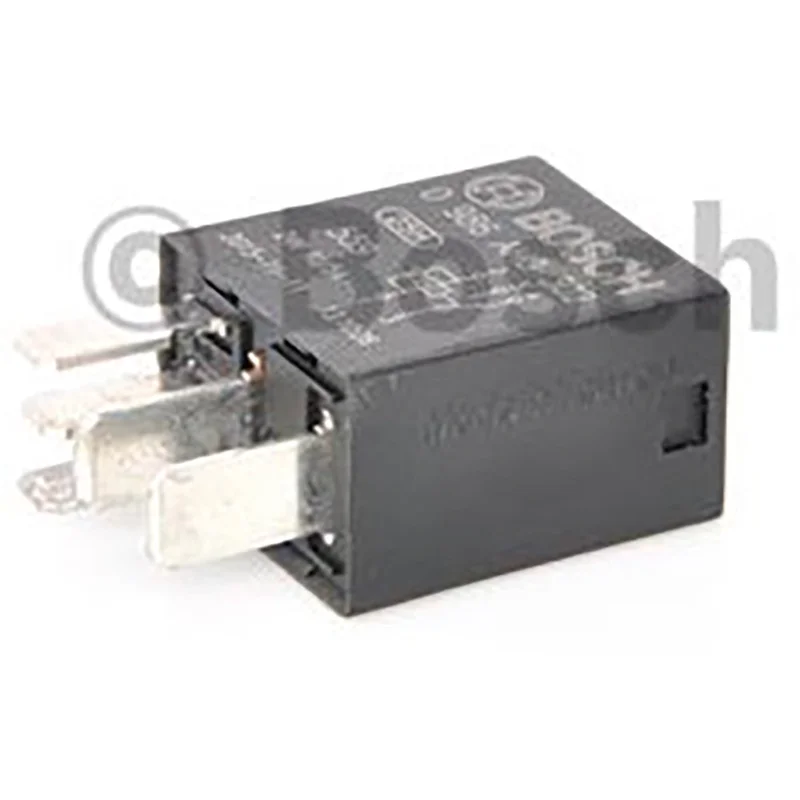

Bosch 0332209152 Mini Relay 12V 30/20A, IP5K4 (SUPERSEDE TO 0986332053)
SPECIFICATIONS
| Type | Change Over |
| Mounting Bracket | N/A |
| Resistor | N/A |
| Diode | Yes |
| Life durability | 250.000 |
| Current | 30/20 Amps |
| Voltage | 12 V |
| Number of Pins | 5 |
| Housing | Plastic Housing |
| Temp Range | -40 ~ +100 °C |
| Housing Protection | IP5K4 |
| Connection Protection | IP20 |
OE NUMBER
FERRARI 156669
MERCEDES 0008350159, 0045453805, A0008350159, A0045453805
VOLVO 873765
