Description
FEATURES
- The 0986332402 model is the replacement for0332209158
- Durable and robust due to meticulous processing and use of high-quality materials for up to 150,000 switching cycles
- Example uses include: cooling fans, fuel pumps, wipers, blowers, lights, door locks, horns, mirrors, and starters
- General purpose relays can be used in cars, trucks, motorcycles, ATVs, off-highway, marine and non-vehicle applications
- Reliable and safe switching of high currents
DESCRIPTION

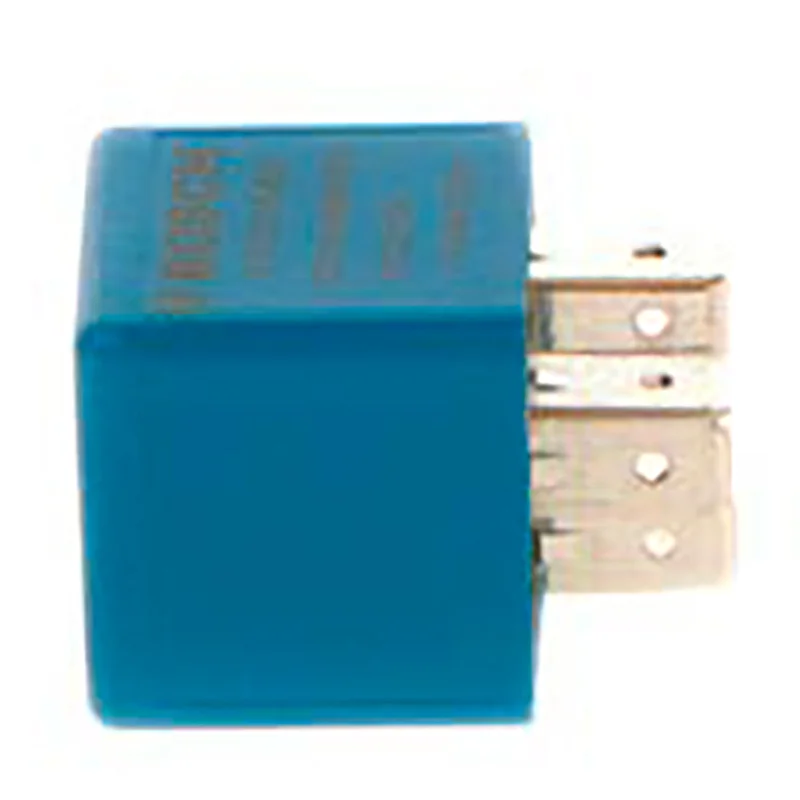

BOSCH 0986332402 Changeover Mini Relay, Diode, 5 Pins, 12 V, 20/30 A
SPECIFICATIONS
| Type | Change Over |
| Mounting Bracket | Yes |
| Resistor | Yes |
| Diode | N/A |
| Life durability | 150.000 |
| Current | 30/20 Amps |
| Voltage | 12 V |
| Number of Pins | 5 |
| Housing | Plastic Housing |
| Temp Range | -40 ~ +100 °C |
| Housing Protection | IP54 |
| Connection Protection | IP20 |
OE NUMBER
AUDI KDWHL09678
FIAT 32190845, 3219084500, K3219084500
HELLA 4RD003520251, 4RD003520257
IVECO 00000099434621, 5158609, 99434621
JOHN DEERE AL57418
VOLVO 1324492
VOLKSWAGEN KDWHL09678
