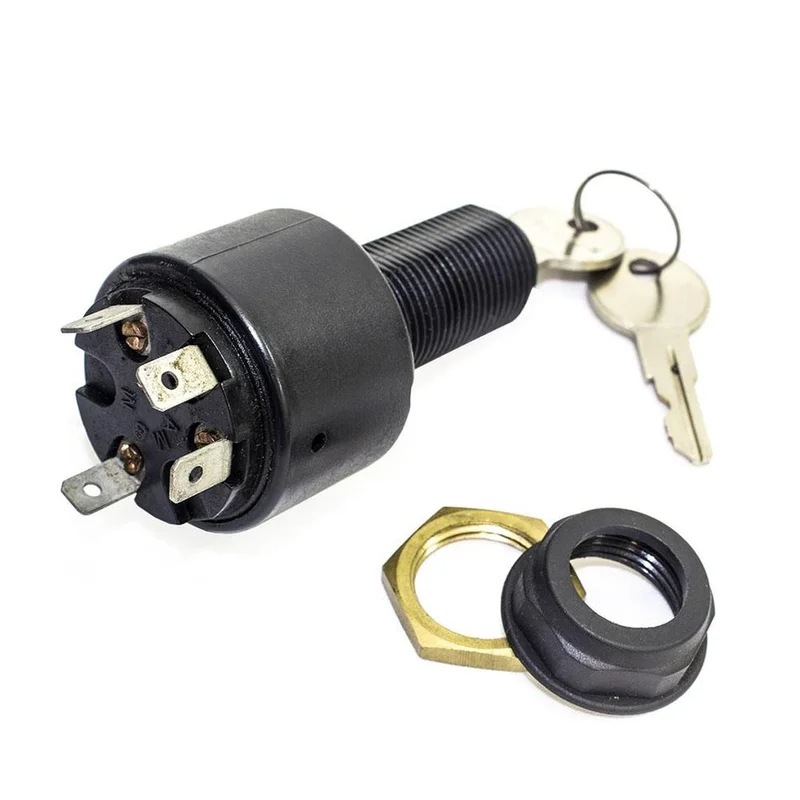

SIERRA MARINE MP39800 Ignition Switch

Description

FEATURES

• Face Nut : Hex Black Plastic, Hole Size : 7/8″ ,Length : Long: 1 1/8″ maximum panel thickness, Material : Marine grade glass-filled polyester, Rated Accessory: 15 Amp @ 12v DC, Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC, Switch Positions: Acc – Off – Run – Start, Terminal Type: 4 Blade
• Type: 4 Position Conventional,Back Up Nut :Brass
• Inner seal between cylinder lock and contact plate, Maximum corrosion protection – eliminates oxidation

DESCRIPTION

Polyester housing is rust and corrosion proof 1/4 blade terminals, requires 7/8 mounting hole in panel Supplied with brass nut and rubber cap to seal out water

Sierra products are engineered to meet today’s high horsepower engine demands and stand up in the harsh marine environment. All Sierra products meet or exceed the original equipment part it replaces. Sierra supplies many OEM engine manufacturers and boat builders hundreds of quality parts every day.

RESOURCES

Manufacturer’s Technical
