Description
FEATURES
- The 0332002259 model is the alternative for 0332002256, 0332002258
- limiting continuous current 100A at 85 °C
- heat, moisture, and vibration resistant
- minimal contact resistance
- IP54 Protection with coil connected
DESCRIPTION

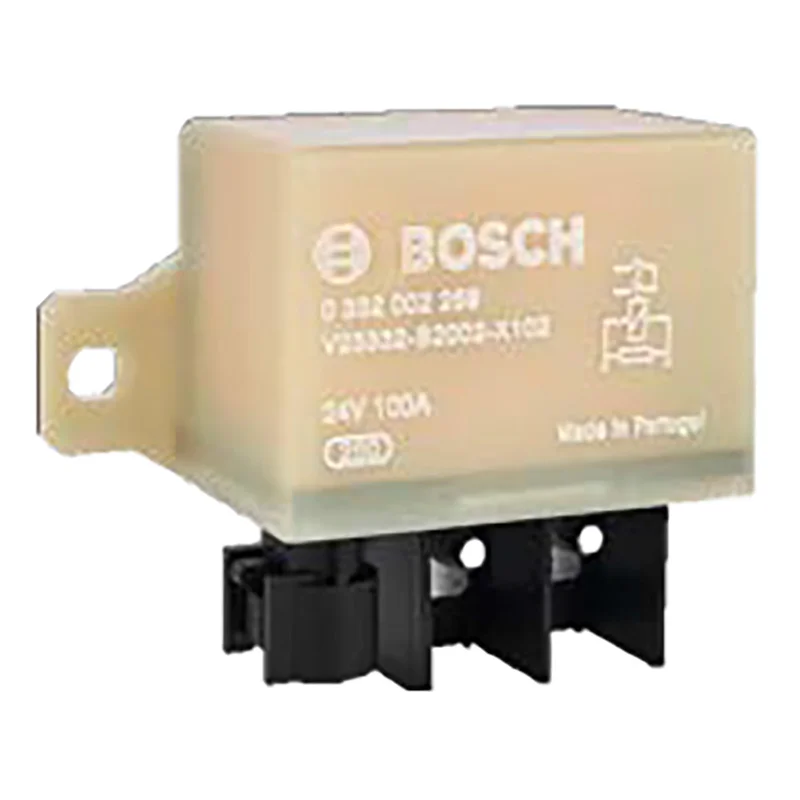

Bosch Power Relays feature a robust design and enhanced capability to perform switching operations in high demand applications like engines, starters, and other large products.
Bosch relays incorporate only the highest quality materials for superior performance and a 100,000 switching cycle capability.
Superior engineering provides vibration, shock, and high temperature resistance that ensures enhanced reliability and a long service life. 24V, 100A. Integral bracket mount. Black.
SPECIFICATIONS
| Type | Normal Open |
| Mounting Bracket | Yes |
| Resistor | Yes |
| Diode | N/A |
| Life durability | 100.000 at 75 Amps |
| Current | 100 Amps |
| Voltage | 24 V |
| Housing | Plastic Housing |
| Temp Range | -40 ~ +85 °C |
| Housing Protection | IP54 |
